Home>Product
- Power:12KW
- Voltage:AC380V/50Hz
- Cut speed:0-15000mm/min
- Thickness :0.5mm-3mm
- External diameter:Φ30-160mm
- Diameter:30mm-160mm
- Max working length:2900mm
- Current:60A
- Specification:3920mm*1600mm*1320mm
- Document transmission form:USB interface
- Working form:Untouched Arc Striking
- Suitable metal sheet:
- All kinds of Stainless sheet ,iron,
- Galvanized plate ,aluminum etc.circle tube and squ
產品概述

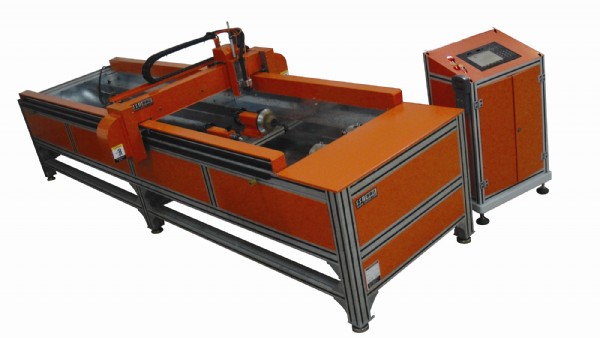

Characteristics of the equipment：1.Using Four-axis control system, can optional step motor drives or servo motor drives,it`s easy to operate.
2.High cutting precision, can be processed minimum workpiece 30×70 mm .
3.Especially suitable for the thin metal circular tube, square tube, etc .
4.Independent research and development water cooling system to ensure that the cutting plate smooth and clean, to avoid the processing once again .
5.Numerical control system configuration is higher , adopt automatic arc striking and stable performance, the success rate of arc striking more than 95%.
6.Plasma power and torch by famous manufacturer in China and have the national patent.
7.3D Rotating cutting, High speed and precision, can complete a variety of graphics cutting.
8.Support Weitai, CAXA, ARTCAM, TYPE3 software etc. Also can through the software conversion read AutoCAD etc creating to DXF/PLT file format, the control system using U flash disk exchange processing documents, easy to operation.
